7 Running SLiM on a HPC Cluster

7.1 Overview

When running SLiM simulations, it is often necessary to run many more than you have CPU cores available on your PC or laptop. As such, even with all cores going at once, you’ll still be looking at a long time to wait to get any data back. Luckily, high-performance computing (HPC) clusters exist which allow you to use hundreds or thousands of cores concurrently. Using the same methods as the previous chapter, we can extend our parallelism to much larger systems. In this chapter, I’ll be providing some examples of how to use the University of Queensland’s (UQ’s) Tinaroo system. Most universities will have access to a similar system, and although there may be some differences in the syntax of some scripts, the concepts remain the same.

7.2 Connecting to Tinaroo and Set-up

This section is mainly written for UQ students/staff wanting to access the UQ system. Readers who aren’t enrolled/employed by UQ unfortunately won’t be able to access Tinaroo. For you, I’d suggest looking into your own organisation’s HPC, and following their directions.

To connect to Tinaroo, after having gained access, use the ssh command with your username:

ssh <username>@tinaroo.rcc.uq.edu.au.

You’ll be asked to confirm you trust the connection and to enter your password, and then will be put through to one of Tinaroo’s login nodes. This is a terminal just like anywhere else, and you will find yourself in your user’s home directory, which will be empty. On the login node (effectively a computer: HPCs are made of many nodes/PCs networked together), you are able to navigate directories, make files and folders, write scripts, and queue jobs. The first thing to do is install SLiM and the necessary R packages to run SLiM in parallel. Of course, you can also install the appropriate python scripts, or download necessary C++ header libraries to use if you are planning on running SLiM via those methods.

To do this, we’ll start an interactive job. This will connect us to a compute node, and allow us to build SLiM without disturbing other users on the login node:

qsub -I -X -A <account-string-given-to-you> -l select=1:ncpus=24:mem=120GB -l walltime=4:00:00

qsub is the command that queues a job to the HPC system. Tinaroo uses PBS, a job scheduler that ensures that everyone using the system is able to fairly access HPC resources for an appropriate amount of time. Other schedulers exist on other systems, so scripts on your HPC system may look slightly different to the examples given. Here we are selecting one node, with 24 cores and 120GB of RAM for a total of 4 hours. Tinaroo’s nodes contain 2 12 core processors (for 24 cores total), and 128GB of RAM, with 8GB reserved for system memory. Hence, we are asking for all of the available resources of a single node for 4 hours. The -I flag indicates the job is interactive, and the -X enables X-Forwarding, so if you would like to use RStudio, the RStudio window will appear for you on your home machine, instead of disappearing into the cybervoid⁸.

You’ll be put into a queue for a brief period (maybe not-so-brief, depending on load), and then you will be connected to a compute node. Now we can get to work. You’ll want to make a new directory for your SLiM installation (mkdir ~/SLiM), and download and build SLiM. You will have to build SLiM manually as per the instructions in the SLiM manual, as the installation script will not work without super-user/root permissions, which you won’t have connecting to a remote HPC. This is fairly straightforward, and well explained in the manual. Note that you will not need to install SLiMgui. Some basic instructions are below.

mkdir ~/SLiM
cd ~/SLiM
curl -O http://benhaller.com/slim/SLiM.zip
unzip SLiM.zip
mkdir build
cd build
cmake ../SLiM
make

slim -testEidos
slim -testSLiM

You’ll be left with slim and eidos executables in your build directory, which you can copy/move anywhere you like in your home directory.

Having built SLiM, you’ll now want to install the parallel libraries you are using to run SLiM in parallel. Tinaroo has multiple R versions available, and it is up to you to load the one you would like. To see the list enter module spider R. Load the appropriate R version with module load R/version.number. Then, when you enter the R command, you will load a command line R interface for you to use. If this doesn’t happen, and you load into a ‘Singularity’ container, type R again and it will launch. Note that this Singularity container can affect your non-interactive jobs, so if you load a version of R with this container in your non-interactive script, you’ll need to remember to enter R a second time in your job script to launch the program properly (more on that soon). From here, install all the packages you need for your R scripts. For example:

install.packages("future",
                 "doParallel",
                 "foreach")

Having done this, you are ready to write some scripts. You can do this on either the compute node, or the login node, or on your local computer and transfer them across with sftp or FileZilla, which we’ll get to later.

7.3 PBS Scripts

A PBS script contains the instructions that the job scheduler will use to determine what we want our job to do. It is simply a bash script with some ‘directives’ at the start to instruct the scheduler on how many resources we want to use. The interactive job line is in itself a PBS script, with some directives. Here is an example of how you might run just one SLiM run from a PBS script alone.

#!/bin/bash -l
#PBS -q workq
#PBS -A your-account-string
#PBS -N slim_eg
#PBS -l walltime=24:00:00
#PBS -l select=1:ncpus=24:mem=120G

cd $TMPDIR

~/SLiM/slim ~/SLiM/Scripts/Tests/Example/SLiM/slim_example.slim

cat /$TMPDIR/slim_output.csv >> /scratch/user/$USER/slim_output.csv

As you can see, the script is split into two sections: the instructions for the scheduler, and the script/job itself. -q defines the queue you want your job put into. On Tinaroo, workq is the default, however this will be different on other systems. Generally, keeping it as the default is fine, but information on when to change your queue can be found in your HPC’s documentation, which may or may not have access restricted to university networks. -N gives your job a name for easier identification when running many jobs at once. The other flags have been explained with the interactive job. The first instruction of our job is to change our working directory to $TMPDIR, which is the local storage on the node you are working on. After each job finishes, this storage is wiped, so it is temporary and unique to every job. We do this because writing files directly to shared drives can be taxing on the system and disrupt other users. We then invoke a call to slim, running a script, and then we copy the output file to more permanent storage.

To queue a job, use the qsub command:

cd ~/home/$USER/SLiM/Scripts/Tests/Example/PBS
qsub example_job.pbs

You’ll get a message like telling you your job id number, and the PBS manager handling it. If you enter qstat you’ll get a list of all your queued and running jobs:

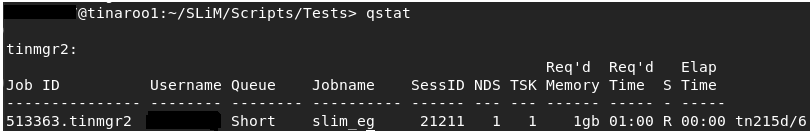

This screen tells you the status of your job (R for running, Q for queued, X for finished), as well as its name, queue, resource requirements, etc. This command has a lot of flags that vary its output, so I’d suggest reading through them using man qstat.

After a job has finished, it will leave behind two files, one for standard output, and one for standard error. If your job crashes, usually found out by if it finishes instantly, or far sooner than expected, then you should have a look at these files to see what went wrong. This are saved in the same directory that you ran the qsub command from. In our example, we cd’d to …./example/PBS, so our output will be there. The files will be named the same as your #PBS -N flag in your .pbs script, with file extensions .eXXXXX and .oXXXXX, where XXXXX is your job’s id number.

Now you could put any bash code in here - including our parallel SLiM in bash example from the previous chapter (6.3). However, I’d rather use R, so let’s do that:

#!/bin/bash -l
#PBS -q workq
#PBS -A qris-uq
#PBS -N slim_eg
#PBS -l walltime=24:00:00
#PBS -l select=1:ncpus=24:mem=120G

cd $TMPDIR

module load R/3.5.0

R --file=/home/$USER/SLiM/Scripts/Tests/Example/R/slim_sublauncher.R

cat /$TMPDIR/slim_output.csv >> /scratch/user/$USER/slim_output.csv

Here, we do the same as before, except we load a version of R, run it with a certain file, and use that R script to handle running SLiM. Note that on Tinaroo (at time of writing) R version 3.5.0 does not have a Singularity container, so I only have to enter R once in my job script. If I was loading a version that was encapsulated by such a container, I’d need to have something like this:

...
...
cd $TMPDIR

module load R/3.5.0

# First R command loads the Singularity container, the second runs the script
R
R --file=/home/$USER/SLiM/Scripts/Tests/Example/R/slim_sublauncher.R
...
...

Let’s have a look at how that script looks:

##############################################################################################################
#  Run SLiM in parallel
##############################################################################################################

#  Parallel script modified from SLiM-Extras example R script, info at
#  the SLiM-Extras repository at https://github.com/MesserLab/SLiM-Extras.

# Environment variables

USER <- Sys.getenv('USER')

# Parallelisation libraries

library(foreach)
library(doParallel)
library(future)


seeds <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/seeds.csv"), header = T)
combos <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/combos.csv"), header = T)


cl <- makeCluster(future::availableCores())
registerDoParallel(cl)

#Run SLiM
foreach(i=1:nrow(combos)) %:%
  foreach(j=seeds$Seed) %dopar% {
    # Use string manipulation functions to configure the command line args, feeding from a data frame of seeds
    # then run SLiM with system(),
        slim_out <- system(sprintf("/home/$USER/SLiM/slim -s %s -d param1=%f -d param2=%f -d modelindex=%i /home/$USER/SLiM/Scripts/Tests/Example/slim/slim_example.slim",
        as.character(j), combos[i,]$param1, combos[i,]$param2, i, intern=T))
  }
stopCluster(cl)

This should be pretty familiar to those who read Chapter 6.4. The only real difference is we get an environment variable from the HPC, $USER, which we use to access some HPC directories. You may notice however, that we haven’t copied across the .csv files from which our seeds and combos are taken! To do this, open up FileZilla:

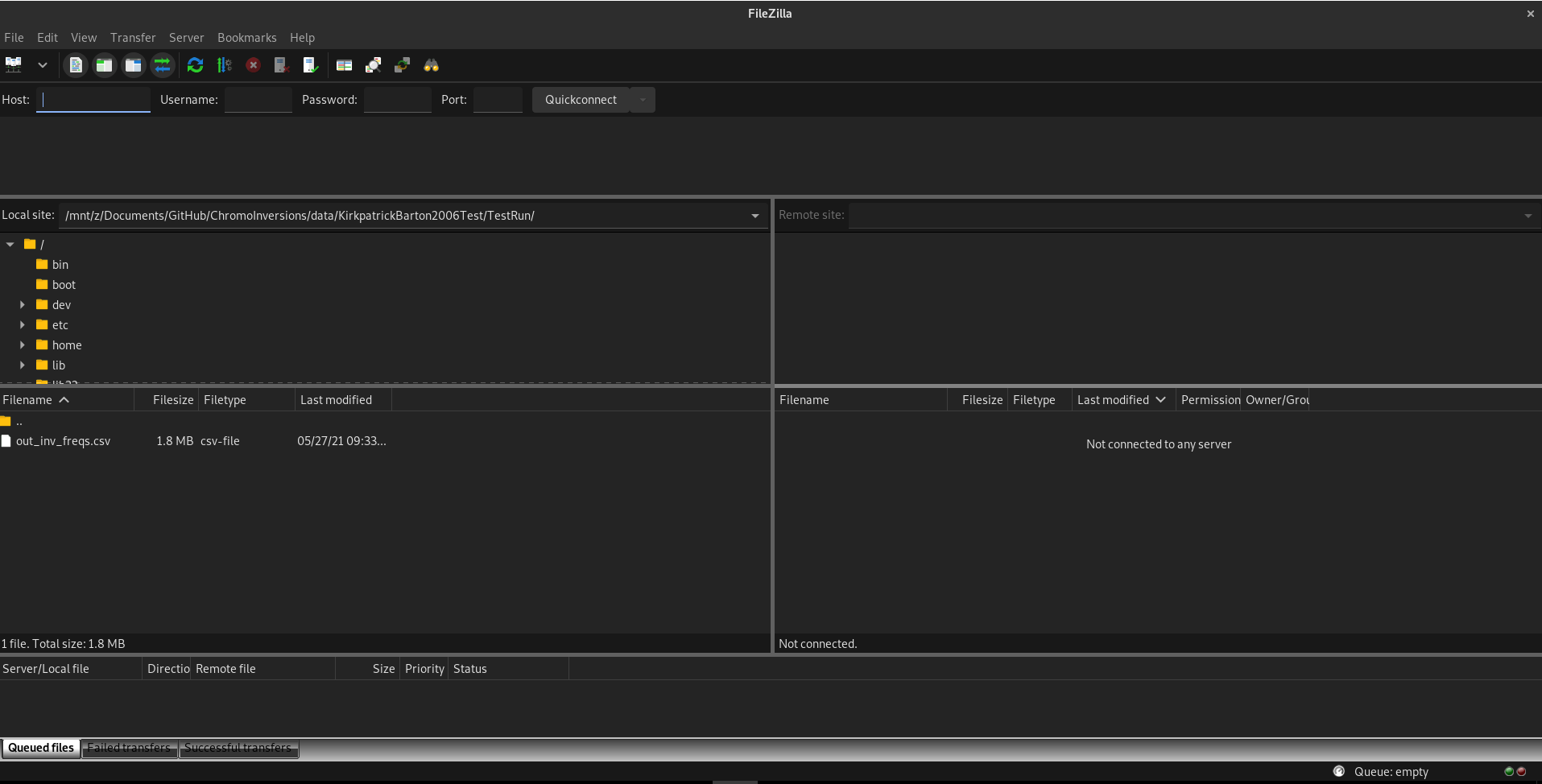

At the top left, you’ll see a quickconnect bar. Enter the following under each option:

Host: sftp://tinaroo.rcc.uq.edu.au
Username: Your username
Password: Your password
Port: 22

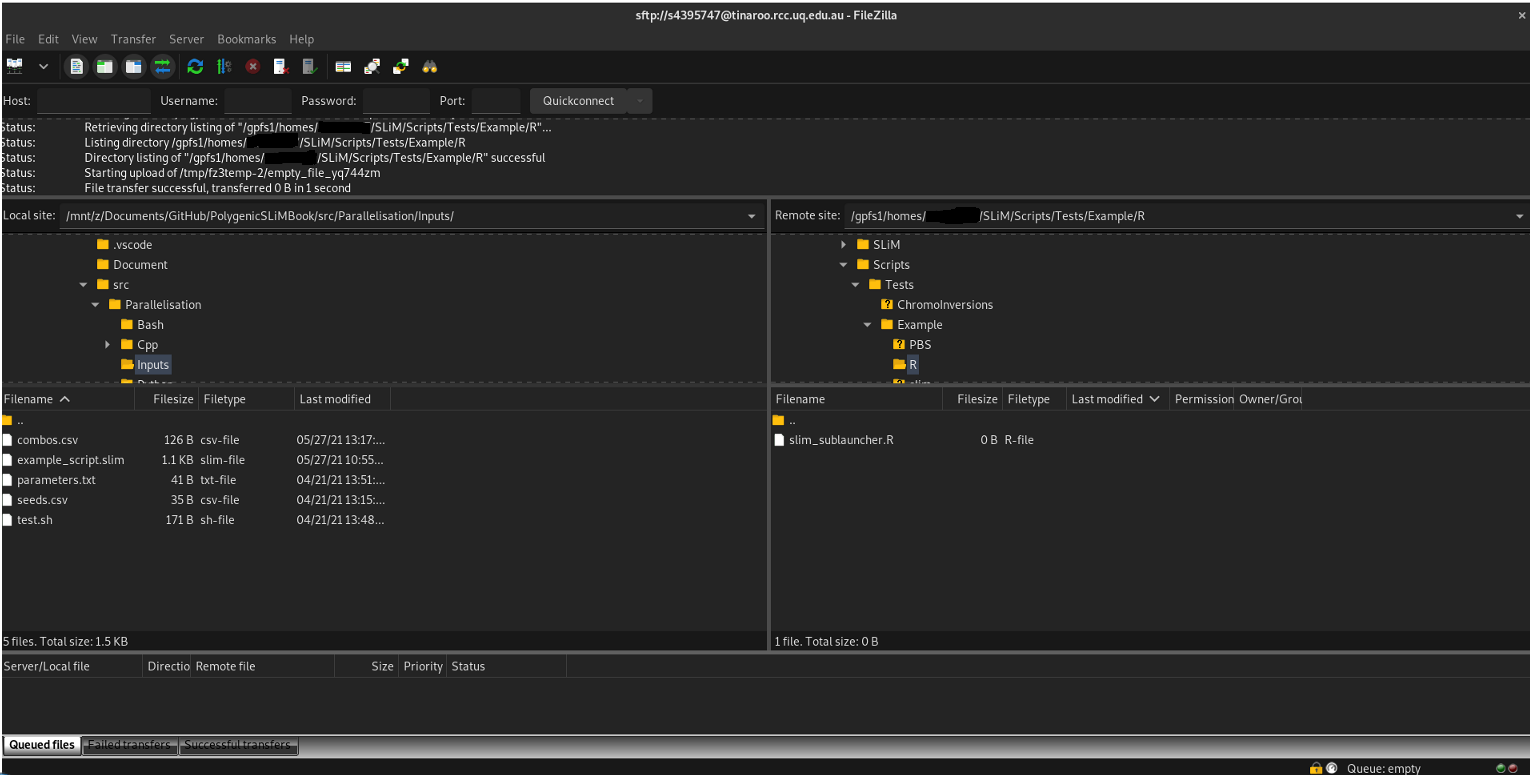

When you click quickconnect, you’ll be greeted by another security message (‘do you trust to connect to this server’), and then you’ll be put through to Tinaroo. The left block is your home computer, the right block is Tinaroo’s filesystem. You can navigate on the left to your files (for example, where you have your combos.csv and seeds.csv files stored) and then on the right, navigate to where you want to put your files and drag and drop them into that folder:

Now when you run your job, you’ll have 24 cores instead of the $<10$ of your local PC, which will make things a tad faster. But we’re still only using one node. We can access multiple nodes in a job and use many more cores at once. Which is exciting! Be excited!

7.4 Multi-node jobs

There are two types of multi-node jobs on Tinaroo, and some form of both should exist on most HPCs. The first, job arrays, is like simultaneously running a whole bunch of these PBS scripts separately and having each work on a subset of your inputs. For example, your first script would handle the first 10 seeds, the next would do the next 10 seeds, etc. Ordinarily, this would be a pain because you would need a lot of scripts to manage all of that. Fortunately, the PBS system handles this for you, and you only need one extra flag to be set in your PBS script. The next system is the Embedded Nimrod system, which uses a different approach: it assigns individual cores to do jobs as they become freed, irrespective of the node they belong to. This is much more powerful for large jobs, where the amount of wasted time between one SLiM run ending and the next beginning can accumulate.

7.4.1 Job array SLiM jobs

Job array jobs are very simple to set-up. A single line has to be added to the PBS Script:

#!/bin/bash -l
#PBS -q workq
#PBS -A qris-uq
#PBS -N slim_eg
#PBS -J 1-4
#PBS -l walltime=24:00:00
#PBS -l select=1:ncpus=24:mem=120G

cd $TMPDIR

module load R/3.5.0

R --file=/home/$USER/SLiM/Scripts/Tests/Example/R/slim_sublauncher.R

cat /$TMPDIR/slim_output.csv >> /scratch/user/$USER/slim_output.csv

#PBS -J 1-4 Is the key line here, where -J signifies a job array, and 1-4 is a vector of identifiers for each sub-job in the array. These identifiers provide a new environment variable, $PBS_ARRAY_INDEX, which can be used to identify which node is in charge of the current script. This can be loaded into R:

##############################################################################################################
#  Run SLiM in parallel
##############################################################################################################

#  Parallel script modified from SLiM-Extras example R script, info at
#  the SLiM-Extras repository at https://github.com/MesserLab/SLiM-Extras.

# Environment variables

USER <- Sys.getenv('USER')
ARRAY_INDEX <- as.numeric(Sys.getenv('PBS_ARRAY_INDEX'))

# Parallelisation libraries

library(foreach)
library(doParallel)
library(future)


seeds <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/seeds.csv"), header = T)
combos <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/combos.csv"), header = T)

# Set which runs to do according to node

switch (ARR_INDEX,
  { combos <- combos[1:5,] },
  { combos <- combos[6:9,] },
  { combos <- combos[10:13,] },
  { combos <- combos[14:18,] }
)


cl <- makeCluster(future::availableCores())
registerDoParallel(cl)

#Run SLiM
foreach(i=1:nrow(combos)) %:%
  foreach(j=seeds$Seed) %dopar% {
    # Use string manipulation functions to configure the command line args, feeding from a data frame of seeds
    # then run SLiM with system(),
        slim_out <- system(sprintf("/home/$USER/SLiM/slim -s %s -d param1=%f -d param2=%f -d modelindex=%i /home/$USER/SLiM/Scripts/Tests/Example/slim/slim_example.slim",
        as.character(j), combos[i,]$param1, combos[i,]$param2, i, intern=T))
  }
stopCluster(cl)

The R script loads in the array index, and uses that value in a switch statement to choose a certain number of rows. This way, the load of parameter combinations is spread across the nodes.

The job array method is good for smaller numbers of jobs, but there is some inefficiency with queueing a lot of subjobs. An alternative is to use Tinaroo’s Embedded Nimrod system, which treats each core across many nodes as an individual device for running a process on.

7.4.2 Embedded Nimrod SLiM jobs

To use Embedded Nimrod, we need to make some changes to both our R script and PBS script. In fact, our PBS isn’t even a .pbs anymore: it’s a .nsh.

#!/sw7/RCC/NimrodG/embedded-1.9.0/bin/nimexec

# Modified from original script by david.green@uq.edu.au
# More information at: https://github.com/UQ-RCC/nimrod-embedded
#
# Submit this script as a PBS job script using the PBSPro qsub command.
# The nimexec command will parse it into what is required.

# Fix up Account String
#PBS -A <your-account-string-here>
#
# Define resources: In this case, 40 nodes, 24 cores, 120GB per node
#PBS -l select=40:ncpus=24:mem=120GB:ompthreads=1
#PBS -l walltime=336:00:00
#
#Job name for ease of recognition
#PBS -N Nim_SLiMeg
#
# Queue
#PBS -q workq

# There are additional directives for Nimrod to interpret with #NIM at the start of each line.
# Tell Nimrod to use this as the shell for the job proper when it has parsed this file.
#NIM shebang /bin/bash

# =============================================================================
# Tell Nimrod what range of parameter values you want to use "1 to 1638 step 1"
# =============================================================================

# The parameters for the 100 parameter combinations are rows in the input file.
#NIM parameter PAR integer range from 1 to 100 step 1

# Repeat 50 times for each combination with a different SEED value
#NIM parameter SEED integer range from 1 to 50 step 1


# Just checking that something did not go wrong with assignment of the J values.
if [ -z "${NIMROD_VAR_PAR}" ]; then
        echo "\$NIMROD_VAR_PAR isn't set, cannot continue..."
        exit 2
fi

if [ -z "${NIMROD_VAR_SEED}" ]; then
        echo "\$NIMROD_VAR_SEED isn't set, cannot continue..."
        exit 2
fi

#Where you submit this job from will be the value of $PBS_O_WORKDIR
echo "PBS_O_WORKDIR is ${PBS_O_WORKDIR}"
#Everything you need should be located relative to PBS_O_WORKDIR, or else a full path
#Set the cd to TMPDIR for writing SLiM output
cd ${TMPDIR}

#=====================
#Modify these to suit.
#=====================

# Always run the entire parameter range cause nimrod can do them in any order.
# See the -f test below about skipping the ones we have already done.
RUNNAME="nim_sublauncher"

OUTFILE="${PBS_O_WORKDIR}/Outputs/TEST_${NIMROD_VAR_PAR}_${NIMROD_VAR_SEED}.txt"
touch "${OUTFILE}"

if [ -f ${OUTFILE} ]; then
  echo "Output file ${OUTFILE} already exists. Skipping this index value ${NIMROD_VAR_LS} ${NIMROD_VAR_SEED}"
  exit 0
fi

mkdir -p ./matrices/model${NIMROD_VAR_LS}

RSCRIPTNAME="${PBS_O_WORKDIR}/R/${RUNNAME}.R"

# Get rid of any residually loaded modules and load R
module purge
module load R/3.5.0-gnu

Rscript $RSCRIPTNAME ${NIMROD_VAR_SEED} ${NIMROD_VAR_PAR}

cat /${TMPDIR}/slim_output.csv >> /scratch/user/${USER}/slim_output.csv

Obviously a bit more involved, so let’s go through it:

The start of the script is pretty similar to a regular PBS script: you specify how many resources you want, give a job name, etc. The only difference is the addition of an ompthreads parameter in your list of resources. ompthreads is a specifier for how many cores you want each ‘subjob’ to have access to. SLiM is single-threaded, so it only needs 1 core to run, so you should set this to 1. If you were using some other program which used 4 cores, and you needed to run that in parallel, you would use ompthreads=4, and make sure that the total number of cores you request is divisible by 4.

Following the familiar part, is everything else. We use #NIM parameter to set the parameters we are iterating over. In this case, we have 100 rows of an input parameter combinations list, so we are going from 1 to 100. We also have 50 seeds which we want to interate over, so we set that as a second Nimrod parameter. We have an error checking section to make sure these parameters have been set correctly, and then we go to running SLiM. First, we write empty output files (touch "${OUTFILE}"), which is done in case the Nimrod system misses some of the runs. If this happens (and it does), you can run the same script again, the Nimrod system will identify which runs have already been done, skip those, and only do the ones it missed the first time around. Then we go back to familiar territory, with using the bash script to sublaunch SLiM from R.

This section is very similar to the PBS script, however we have defined some script names as variables rather than using direct filepaths. For example, RSCRIPTNAME="${PBS_O_WORKDIR}/R/${RUNNAME}.R" is essentially the same as doing /home/$USER/SLiM/Scripts/Tests/Example/R/slim_sublauncher.R. Here, instead of R file=..., we run Rscript, which allows us to feed in environment variables directly: we can use these variables to tell R which parameter combination and seed to run for. This Rscript will run for each and every run that happens, with a different combination of NIMROD_VAR_SEED AND NIMROD_VAR_PAR. Lets have a look at how the R script works:

##############################################################################################################
#  Example SLiM sublauncher in R, using Tinaroo's Embedded Nimrod system                                     #
##############################################################################################################

#  Parallel script modified from SLiM-Extras example R script, info at
#  the SLiM-Extras repository at https://github.com/MesserLab/SLiM-Extras.

# Thanks to David Green (david.green@uq.edu.au) for getting this to work on Nimrod

# NEED TO PROCESS 2 PARAMETERS PASSED IN REPEAT(i.e. SEED) and COMBOS ROW NUMBER
args <- commandArgs(trailingOnly = TRUE)
if ( length(args) < 2 ) {
  cat("Need 2 command line parameters i.e. SEED, PAR\n")
  q()
}

row_seed     <- as.numeric(args[1])
row_combo    <- as.numeric(args[2])

# Environment variables

USER <- Sys.getenv('USER')


# Load LHS samples - Production run is 100 samples, 50 seeds

seeds <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/seeds.csv"), header = T)
combos <- read.csv(paste0("/home/",USER,"/SLiM/Scripts/Tests/Example/R/combos.csv"), header = T)

#Run SLiM, defining parameter sets according to LHC samples in command line

i <- row_seed
j <- row_combo

slim_out <- system(sprintf("/home/$USER/SLiM/slim -s %s -d param1=%f -d param2=%f -d modelindex=%i /home/$USER/SLiM/Scripts/Tests/Example/slim/slim_example.slim",
        as.character(seeds$Seed[i]), combos[j,]$param1, combos[j,]$param2, j, intern=T))

Very familiar, but there’s no for loop. R isn’t handling any parallelism in Nimrod. Each SLiM job will run its own one of these R scripts, with its own unique combination of seeds and combos.

7.5 Estimating Simulation Time

When you scale up your simulations, you might notice that your job gets stuck in queue for a while. Such is the cost of shared resources, comrade. It’s important to have a look at the maximum resource allocations for your HPC and queue to make sure you aren’t stuck in an indefinite queue which will never end. On Tinaroo, the maximum wall time is 336 hours, for instance. This information can typically be found in your HPC’s user guide.

A way to reduce your queue time is to estimate how much time your simulations will take to run. This way, you will have a better idea of how much walltime to request, and whether you need a large number of cores and nodes, or if you can afford to scale it back. To measure this, you need a per-simulation worst-case scenario running time. Choose the parameter values that will lead to the slowest simulation in your experiment: for example, the greatest population size in your range of values, the highest recombination rate, highest mutation rate etc. You can measure running time in SLiM using the clock() function:

defineConstant(beginTime, clock()); // record the computer's time at the start of the run

// The rest of your SLiM script goes here

catn("Time taken: " + clock() - beginTime);
sim.simulationFinished();

Pretty self-explanatory, but we take the start time of the run from the end time using clock() and print out the time taken to stdout.

The reason we choose the worst-case scenario rather than the average case is because typically the average can be misleading when the longest-running and shortest-running simulations are very different in time taken. In fact, in most computer experiments, the worst-case scenario is closer to the time it will take to run. If it isn’t, it is better to over-compensate than under-compensate, as the former won’t result in the job being prematurely terminated. We also account for Murphy’s law this way. Once you have a reasonable estimate of your per-run worst-case scenario, you can multiply this by your total number of runs:

$t_{w} = t_{s}(n_{p}n_{r})$

Where $t_{s}$ is the time taken for a single run, $n_{p}$ is the number of parameter combinations, and $n_{r}$ is the number of replicates. This is your sequential walltime: if you were to run every simulation sequentially it would take approximately that long to do the job. That’s why we run in parallel - we need to reduce that walltime for any kind of SLiM computer experiment to be feasible. You can divide this sequential walltime by the total number of cores you are requesting to gauge how long it will actually take. Let’s do a worked example:

Say I have calculated a worst-case time of 8 hours. I need to do 256 parameter combinations with 50 replicates each. Hence, my sequential walltime would be:

$8 \times (256 \times 50) = 102400$ hours.

Now say I want to use 20 nodes with 24 cores each. I can divide 102400 by 480 to get 213.33 hours, about 9 days. Keep in mind that if your sequential walltime does not evenly divide into your number of cores, you will be underestimating by one of your worst-case time, since you can’t have half of a core. So in actuality, this example’s walltime would be $213 + 8 = 221$ hours.

If you suspect your RAM or storage might be an issue, you can do a similar exercise to calculate the maximum RAM used per simulation and the amount of storage space (although this can also be done per sample rather than per simulation to save time, assuming your samples are of equal/close to equal size for each time point).

From this information, you’ll be better equipped to figure out how many nodes and cores you need to request, and also how much time the simulation will take to run. By reducing how much you’re asking for, your queue times should diminish.

7.6 Other Considerations

As well as managing queuing and predicting experiment times, you will also want to keep in mind your experiment’s RAM usage. Typically SLiM simulations don’t use a great deal of memory, however this depends on a number of factors including the number of simulated individuals, and whether or not you are invoking other commands via system() which will have other associated memory costs. Remember that since each CPU core is running a separate model, your memory usage per core needs to be on average less than the total RAM per core. For example, if you are working on a HPC with 120 GB of available memory and 24 cores, that is $\frac{120}{24} = 5$ GB of memory per core, so your simulations cannot exceed an average of 5 GB per simulation. This typically isn’t a problem, but in cases where you are running R from SLiM (as mentioned in SLiM Online Workshop #14), memory usage can balloon. If you need to use R’s (or another language’s) functionality to solve a problem that SLiM doesn’t natively support, you will need to keep this in mind: if you are exceeding the memory limit, you might have to reduce the number of cores you are using per node so each running simulation has access to more memory.

Another problem is in the form of getting data out: in large simulations the SLiM output can be many 100s of GBs. While not as extreme as genomic data, copying this across can still be slow. Unfortunately, since most of the data is stored in plaintext, it is difficult to compress as well. Nonetheless, using tools such as gzip, tar and zip can help with reducing the size of your output for easier transfer from the HPC’s network to your more permanent storage facility (either a local drive or another cloud storage service).

7.7 Footnotes

Technical term.↩︎
